A Homeowner’s Guide to Rheem® Water Heater Parts in the Ohio Valley

I’m Alex Largent, and I own Honest Fix Home Services. For more than two decades, I’ve been working on plumbing and heating systems for families here in the Ohio Valley. In that time, I’ve encountered nearly every problem a water heater can throw at you. My business, Honest Fix, is built on a simple promise: we earn your trust with hard work, straight answers, and doing the right thing on every job. I created this guide based on that principle. When you lose hot water, you need clear information, not a complicated search for what’s wrong and which part you need.

This resource is intended to be the most straightforward and useful guide for anyone needing Rheem water heater parts in Weirton, Steubenville, Toronto, and our neighboring communities. As a Rheem Pro Partner, my team receives ongoing, specialized training and has direct access to original factory components, so you can be sure the information here is both accurate and practical. This guide is here to provide you with direct answers, whether you’re trying to identify a component, learn its function, or decide on your next move.

Table of Contents

1. First Things First: Finding Your Rheem Model & Serial Number (#section-1)
2. The Anatomy of a Rheem Tank-Type Water Heater: A Component-by-Component Breakdown (#section-2)
3. A Look Inside Your Rheem Tankless Water Heater (#section-3)
4. Getting Rheem Parts in the Ohio Valley: DIY Stores vs. a Local Pro (#section-4)
5. Understanding Your Rheem Parts Warranty (#section-5)
6. Quick Answers to Your Top Rheem Parts Questions (#section-6)
7. About the Author: Your Local, Certified Expert (#section-7)

First Things First: Finding Your Rheem Model & Serial Number

Before you can find a replacement part, you must first identify the exact model of your Rheem water heater. This is the most critical initial step. Without the correct model and serial number, locating the right part becomes a guessing game. This information is essential for obtaining a component that will fit, work correctly, and maintain your system’s warranty.

How to Find the Rating Plate

Every Rheem water heater is equipped with a rating plate—a large sticker that holds all the key data for your unit, including its model and serial numbers. Locating it is typically a simple process.

• For Tank-Type Water Heaters: The rating plate is almost always found on a large sticker on the side of the tank, usually near the top or just above the gas control valve or electrical panels.
• For Tankless Water Heaters: On these more compact, wall-hung units, the rating plate is generally located on the front cover or on the right side of the unit’s exterior case.
• For Hybrid/Heat Pump Water Heaters: Much like standard tank models, the label is on the front of the unit, often near the control panel or user interface.

If you have difficulty finding it, use a flashlight to inspect all sides of the unit, as it can sometimes be placed in an inconspicuous spot during installation.

How to Read Your Rheem Serial Number

Your Rheem serial number provides more than just a unique identifier; it tells you the precise manufacturing date of your water heater. This information is essential for knowing its age, checking its warranty status, and making smart decisions about whether to repair or replace it. The serial number is a 10-digit code.

Here is the breakdown:

• The first two digits indicate the month of manufacture.
• The following two digits indicate the year of manufacture.
• The rest of the digits are the unit’s unique production number.

For instance, a serial number of 1209D01234 means:

• 12 signifies it was produced in December.
• 09 signifies it was produced in 2009.

This code reveals the water heater was made in December 2009. Knowing the age is important, as the typical lifespan for a tank water heater in our region is around 10 to 12 years.

The Importance of the Model Number

The model number is your water heater’s specific ID. It contains coded details about the unit’s capacity in gallons, its fuel source (natural gas, propane, or electric), and other specifications. Many online searches are for “rheem water heater parts by model number,” because it is the only way to guarantee you are getting the correct part.

When you provide a professional with your model number, they can pull up the precise parts list for your specific unit. This removes the danger of purchasing a component that won’t fit or operate as it should. At Honest Fix, this number is our guide. When you provide it to us, we can access the exact parts diagram for your unit, ensuring a perfect match every time. No shortcuts.

The Anatomy of a Rheem Tank-Type Water Heater: A Component-by-Component Breakdown

A conventional tank-style water heater functions by maintaining a reservoir of hot water, ready for use. Although the idea is simple, the internal parts vary greatly depending on whether the unit is gas or electric. Knowing these components can help you pinpoint an issue when one occurs.

Gas Water Heater Parts

Gas-fired water heaters use a burner to heat water from the tank’s bottom. These models feature several distinct parts associated with their combustion and safety mechanisms. Searches for “rheem gas water heater parts” and “rheem gas water heater parts diagram” are frequent, as these systems contain more components than electric models.

Pilot Assembly

The pilot assembly serves as the ignition point. It includes a small, constant flame (in older units) or an electronic spark igniter (in newer ones) that ignites the main burner when the thermostat signals a need for heat.

• Sign of Failure: The most frequent issue is a pilot light that will not ignite or stay lit after the control knob is released.
• Alex’s Advice: Handling gas lines and ignition systems is a job for a trained professional, not a DIY project. A failing pilot assembly is a safety concern that requires professional service.

Thermocouple

The thermocouple is a key safety component. It is a small metal probe positioned within the pilot flame. The heat from this flame creates a small electrical voltage that keeps the gas valve open. If the pilot flame extinguishes, the thermocouple cools, the voltage stops, and the gas valve shuts automatically, stopping unburned gas from entering your home.

• Sign of Failure: The pilot light comes on when you press the button but extinguishes when you let go. This typically indicates a worn-out thermocouple that is no longer producing sufficient voltage.
• Alex’s Advice: A thermocouple is a standard replacement part, but correct installation is critical. If the connection at the gas valve is too tight, it can be damaged, and if it’s too loose, it won’t work. It’s a fast repair for a professional but can be a source of frustration for a homeowner.

Gas Control Valve/Thermostat

This component is the command center of a gas water heater. It is a combined unit that manages the gas flow to the burner and houses the thermostat for setting the water temperature.

• Sign of Failure: The heater doesn’t produce hot water, gas isn’t flowing to the burner even with the pilot lit, or the water temperature cannot be adjusted.
• Alex’s Advice: This is the most important safety device on your gas water heater. A certified professional must perform the replacement to conduct a leak test and ensure proper calibration.

Burner Assembly

Positioned at the base of the water heater inside the combustion chamber, the burner assembly is where gas is burned to generate the flame that heats the tank.

• Sign of Failure: A weak, yellow, or sooty flame instead of a strong, blue one. You may also hear a loud “whoosh” or rumbling noise upon ignition.

Flammable Vapor Sensor (FV Sensor)

This is a critical safety device on all gas water heaters made since the early 2000s. The FV sensor is a small component near the bottom of the unit that detects flammable vapors in the air (from sources like gasoline or solvents) and will shut down the water heater to prevent a fire or explosion.

• Sign of Failure: The water heater refuses to light, and a status light on the gas control valve flashes an error code.
• Alex’s Advice: This sensor is there to prevent a disaster. Never attempt to bypass it. If it activates, the first step is to locate and remove the source of the flammable vapors. Then, a professional must be called to inspect the unit and safely reset or replace the sensor.

Electric Water Heater Parts

Electric water heaters have a simpler construction. They utilize powerful heating elements to warm the water inside the tank, similar to a large electric kettle. Most inquiries about “rheem electric water heater parts” pertain to these main components.

Heating Elements (Upper & Lower)

These are metal rods that sit inside the tank and heat the water via electrical resistance. Most Rheem residential electric models have a dual-element, non-simultaneous design. This means the upper element heats the top portion of the tank first. Once that water is hot, power shifts to the lower element to heat the rest. Only one element operates at any given time.

• Signs of Failure: If the upper element breaks, you will have no hot water. If the lower element breaks, you will only have a small amount of hot water that depletes quickly.
• Alex’s Advice: Replacing a heating element requires turning off the power at the circuit breaker, draining the tank, and handling high-voltage electrical connections. While some skilled homeowners might try this, I always suggest a professional to ensure the job is done safely.

Thermostats (Upper & Lower)

Each heating element has its own thermostat. These are switches that respond to temperature, signaling the elements when to activate and deactivate. The upper thermostat serves as the main controller and includes a red high-limit safety switch (a reset button) that will cut all power if the water becomes dangerously hot.

• Signs of Failure: The water is either excessively hot or not hot enough. If you have no hot water, the first step is to check if the high-limit reset button on the upper thermostat has been tripped.
• Alex’s Advice: If the reset button trips repeatedly, it signals a deeper issue, such as a shorted heating element or a bad thermostat. This requires a proper diagnosis using a multimeter.

Parts Common to Both Gas & Electric Models

Regardless of whether your heater is gas or electric, the tank and its primary water-related components are mostly identical.

Anode Rod (The “Sacrificial” Rod)

This is one of the most vital parts for extending the life of your water heater, yet many homeowners are unaware of it. The anode rod is a long metal rod (typically magnesium, aluminum, or zinc) that is screwed into the top of the tank. It is engineered to corrode and dissolve over time through an electrochemical reaction. By “sacrificing” itself, it prevents the steel walls of your tank from rusting.

• Signs of Failure: A “rotten egg” or sulfur odor coming only from your hot water is a telltale sign of a depleted anode rod reacting with bacteria. Discolored or rusty hot water is another indicator. The final sign is a leaking tank, which means the rod has been gone for some time.
• Alex’s Advice: Inspecting and replacing your anode rod every 3-5 years can significantly extend the life of your water heater. It is the most effective maintenance you can perform. The rod can be hard to remove due to corrosion, making it a job best suited for a professional with the proper tools.

Dip Tube

The dip tube is a plastic pipe that runs from the cold water inlet at the top of the heater down to the bottom. Its function is to deliver incoming cold water to the bottom for heating, which stops it from mixing with the hot water ready for use at the top.

• Sign of Failure: The most obvious sign is a sudden, sharp reduction in the amount of available hot water. If a shower that used to last 10 minutes now runs cold in 3, a broken dip tube is a strong possibility. You might also notice small white plastic bits clogging your faucet aerators.
• Alex’s Advice: People often mistake lukewarm water for a failed heating element, but a broken dip tube can cause the same symptom. A correct diagnosis is needed to avoid replacing the wrong part.

Temperature & Pressure (T&P) Relief Valve

This is a mandatory safety device on every tank water heater. The T&P valve is a brass valve, typically on the top or side of the tank, with a discharge pipe aimed at the floor. If the tank’s internal temperature goes above 210°F or the pressure exceeds 150 psi, the valve opens automatically to release water and steam, preventing a hazardous explosion.

• Sign of Failure: The valve is leaking or dripping water from its discharge pipe.
• Alex’s Advice: If your T&P valve is releasing water, it is either functioning correctly due to an unsafe condition (like high pressure) or the valve itself is faulty. In either case, it requires immediate service from a qualified plumber. This is not a DIY fix due to the serious safety hazards. Often, a dripping T&P valve is a symptom of high pressure from thermal expansion, indicating the need for an expansion tank.

Drain Valve

Located at the base of the water heater, the drain valve resembles a hose bib. It is used to drain the tank for maintenance, like flushing sediment, or for replacement. Many original valves are plastic and can become brittle.

• Sign of Failure: The valve is leaking, dripping, or is stuck and won’t open.
• Alex’s Advice: Flushing your tank annually can prolong its life and boost efficiency. If you have a plastic drain valve that is leaking or seized, we suggest replacing it with a more reliable brass ball valve.

Expansion Tank

An expansion tank is a small, secondary tank installed on the cold water line leading to the water heater. As water heats, it expands (a process called thermal expansion). In a “closed” plumbing system, this expansion causes a rapid and intense pressure increase. The expansion tank has an air bladder that absorbs this extra pressure, protecting your T&P valve, fixtures, and the water heater from damage.

• Sign of Failure: A T&P valve that drips only when the water is heating is a classic indicator that you either need an expansion tank or your current one has failed.
• Alex’s Advice: Local plumbing codes in our area often require an expansion tank. If you lack one and your T&P valve is dripping, this is very likely the problem.

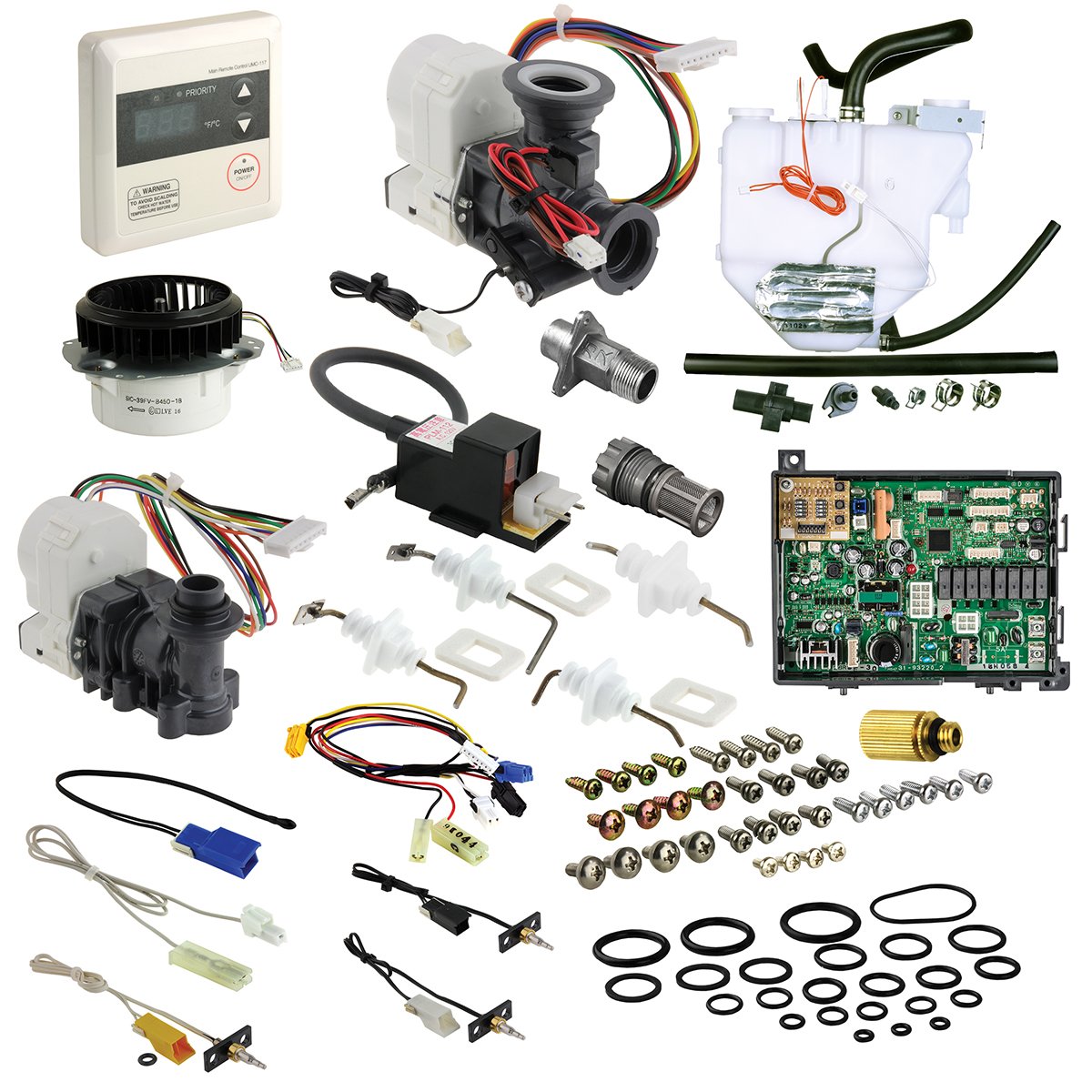

A Look Inside Your Rheem Tankless Water Heater

Tankless water heaters, or on-demand heaters, operate differently. They heat water instantly as it passes through the unit instead of storing it. This technology is more advanced, and while homeowners are less likely to do internal repairs, knowing the main parts helps when explaining an issue to a technician. Searches for “rheem tankless water heater parts” often stem from a desire to understand these complex systems.

Core Components Explained

• Heat Exchanger: This is the central component of a tankless unit. It consists of a network of pipes and fins that are heated to a high temperature by the burner. Water flows through these pipes, absorbing heat almost instantly. Rheem utilizes durable materials like copper and stainless steel, which offer different advantages for performance and durability depending on water conditions.
  • Sign of Failure: A leak coming from inside the unit often points to a damaged heat exchanger, which is a significant repair.
• Flow Sensor (or Flow Switch): This part acts as the trigger. When you open a hot water tap, the flow sensor detects the water’s movement and tells the control board to start the heating cycle.
  • Signs of Failure: The most common issue is the unit not turning on when a tap is opened, resulting in cold water. A faulty sensor might also cause the unit to keep running after the tap is turned off.
• Control Board: This is the electronic brain of the tankless heater. It takes information from the flow and temperature sensors, adjusts the gas valve and fan, and oversees all safety functions. It is what enables instant and consistent hot water.
  • Sign of Failure: The unit is not responding, shows an error code, or operates unpredictably.
• Burner and Igniter Assembly: Much like a gas tank heater, a burner provides the flame, and an igniter starts it. In a tankless model, this happens quickly and is managed precisely by the control board.
• Venting System: Because tankless units have a powerful burner, they need a dedicated, sealed vent system to safely expel combustion gases. This can involve special concentric vents that combine both an exhaust and an air intake pipe.
  • Alex’s Advice: The technology in a tankless water heater is impressive but also intricate. A problem with one electronic sensor can often present like an issue with a different part entirely. If you have a problem, check the digital display for an error code, which can help us begin our diagnosis. For any internal issues, you’ll need a trained technician with the proper diagnostic equipment.

Getting Rheem Parts in the Ohio Valley: DIY Stores vs. a Local Pro

When a part is needed, many people’s first move is to search for “rheem water heater parts near me”. This frequently leads them to large hardware stores. While this can work in some cases, it’s important to know the difference between that route and contacting a local, certified professional.

The Big-Box Store Experience (Home Depot, Lowe’s)

You can go to a store like Lowe’s or Home Depot and find a variety of water heater parts available.

• Pros: You may be able to find a common component, like a universal heating element or drain valve, right away.
• Cons: The inventory is often quite limited. They usually carry “universal” parts that might not be a precise match for your Rheem model. The employees, though willing to help, are not trained technicians. They cannot diagnose your issue or ensure the part you are buying is the correct one. You are responsible for the installation.

The Honest Fix Advantage: Your Local Rheem Pro Partner

As a Rheem Pro Partner, we provide a different standard of service for our clients in Weirton, Steubenville, Toronto, Wintersville, and the nearby areas.

• Expert Diagnosis First: Before purchasing any part, you need to be certain about the problem. A dripping T&P valve might indicate a pressure issue, not a faulty valve. We don’t make assumptions; we diagnose. Our “free exact quote” means we will visit your home, find the source of the problem, and provide a clear price to fix it correctly.
• Access to Genuine OEM Parts: We install Genuine Factory Authorized Parts specifically designed and tested for your Rheem system. This is crucial for maintaining safety, performance, and your manufacturer’s warranty. We can access the entire Rheem parts catalog, not just a few items on a store shelf.
• Parts Stocked on Our Trucks: For many common issues, we carry the exact Rheem part on our service vehicle. This often allows us to finish the repair in one visit, restoring your hot water more quickly.
• Professional, Safe Installation: Any repair that involves your gas line or high-voltage electrical system should be done by a certified technician. This is about more than just completing the job; it’s about ensuring your family’s safety. My certifications, including NATE, Universal EPA, and OSHA 10-Hour, reflect my dedication to the highest safety and technical standards.
• We Stand Behind Our Work: If you purchase a part from a store and install it yourself, and it doesn’t solve the issue, you’re back where you started. When we provide and install a part, we guarantee the entire job. Our aim is 100% satisfaction, with no exceptions.

If you need the right Rheem part and a guaranteed repair, call Honest Fix today at 740-825-9408 for your exact quote. No Upsells. No Games. Just Honest Fixes.

Understanding Your Rheem Parts Warranty

If your water heater is fairly new, a defective part might be covered by the warranty. Understanding this process is a frequent concern for homeowners who search for “rheem water heater warranty parts”.

How to Check Your Warranty

The warranty coverage starts on the installation date. If you lack a record of this date, Rheem uses the manufacturing date (from the serial number) plus 90 days as the start date.

• The Simplest Way to Check: The most reliable method to confirm your warranty status is by using Rheem’s official online warranty verification portal. You’ll need the serial number from your unit’s rating plate.

How a Claim is Processed

Filing a warranty claim generally requires that the claim be submitted soon after the part fails. For a tank replacement, Rheem mandates the return of the original rating plate from the old unit. For some parts, the defective component itself must be sent back for inspection. The process may also require a copy of the professional’s invoice that details the work performed.

How a Rheem Pro Partner Makes it Easy

The warranty system can be complex, and the required paperwork can be a burden. As your local Rheem Pro Partner, we serve as your representative.

• We Handle the Paperwork: We are familiar with the procedures. We will confirm your warranty coverage, file the claim correctly, and manage the return of any necessary parts or labels.
• We Ensure Compliance: We make sure all warranty requirements are fulfilled so your claim is processed without issues.
• We Get You Back Up and Running: Our main goal is to get your hot water working again. We handle the warranty details so you don’t have to, ensuring you receive the full benefits of your coverage. For some claims, particularly on commercial models, Rheem requires authorization from their technical service department—a step we manage regularly.

Quick Answers to Your Top Rheem Parts Questions

Here are some direct answers to the most frequent questions we get from homeowners in the Ohio Valley.

What are the main parts of a Rheem water heater?

A Rheem tank water heater consists of several key components. Gas units use a burner assembly, pilot light, and thermocouple to generate heat. Electric units use upper and lower heating elements and thermostats. Both versions have an anode rod to fight rust, a dip tube for water circulation, a T&P valve for safety, and a drain valve.

Where can I find a Rheem water heater parts diagram?

Parts diagrams, or schematics, are unique to your water heater’s model number. The best way to get the correct diagram is to have a professional look it up using your model number. Your unit’s user manual might also include a basic parts list.

How do I look up Rheem water heater parts?

The only sure way to find a specific part is by using the complete model number from your unit’s rating plate. You can use this number on official parts supplier websites or give it to a Rheem Pro Partner like Honest Fix to locate the exact, factory-approved replacement part.

What part do I need if my pilot light won’t stay lit?

If the pilot flame ignites when you hold the control knob but extinguishes as soon as you release it, the most frequent cause is a faulty thermocouple. This is a safety device that needs to be replaced.

Why does my hot water smell like rotten eggs?

That specific sulfur odor is almost always the result of a depleted magnesium anode rod. When the rod is nearly gone, it can cause a chemical reaction with bacteria in some water supplies, creating hydrogen sulfide gas—which is the source of the smell. Replacing the anode rod will fix the issue.

Common Rheem Problems and the Likely Part to Blame

This table will help you quickly connect a symptom to a possible cause.

About the Author: Your Local, Certified Expert

I trust this guide has provided you with the clear, honest information you were seeking. At Honest Fix, we are committed to empowering our community with useful knowledge. But when you require professional help, we are here to perform the job correctly—the first time, without any shortcuts.

Alex Largent, Co-Owner, Honest Fix Home Services

As a co-owner of Honest Fix, I have founded my company on the values of integrity and transparency. With more than two decades of direct experience in the residential HVAC and plumbing fields, I have devoted my career to developing the technical expertise needed to resolve difficult issues and, equally important, to communicating with homeowners in a clear and respectful manner. Before starting Honest Fix, I was an Install Manager and directed the in-house training program for a large home services company, where I was tasked with upholding the highest standards of quality and customer education.

My dedication to quality is supported by the industry’s top certifications, which ensure that every job we undertake is safe, efficient, and compliant with all codes.

• NATE Certified (North American Technician Excellence)
• Senior Efficiency Analyst NATE Certification
• Universal EPA Certified (for safe refrigerant handling)
• OSHA 10-Hour Construction Safety and Health

We are proud to serve as your local experts in Weirton, Steubenville, Toronto, Wintersville, Mingo Junction, Follansbee, Wellsburg, Brilliant, New Cumberland, and Colliers. When you need a repair you can count on, call Honest Fix for your Service call today..
