Rheem Furnace Filter Guide: Locations, Performance & the AprilAire Clean Coil Standard

Why Furnace Filters Matter for Rheem System Performance

Quick Answer:
A dirty or restrictive furnace filter is the most common cause of Rheem furnace overheating and airflow problems. Standard 1-inch filters can create excessive static pressure, triggering high-limit shutdowns (Code 22) and damaging blower motors or heat exchangers. Many HVAC professionals recommend deep-media filtration systems like AprilAire to protect airflow and system efficiency.

Why Furnace Filters Cause So Many Rheem System Failures

Quick Answer:
Restricted airflow from clogged or overly dense filters forces the furnace to run hotter than designed. This can cause high-limit safety shutdowns, blower motor stress, and premature heat exchanger damage, especially in high-efficiency systems.

In my 30 years overseeing HVAC systems across Ohio, I’ve seen more Rheem furnaces fail because of a $10 air filter than any other component.

Homeowners often try to improve indoor air quality by installing thick high-MERV allergy filters.

But many of those filters restrict airflow so severely that they effectively choke the furnace blower.

When airflow drops, several problems appear:

• high-limit safety trips (Code 22)
• blower motor fatigue
• reduced efficiency
• potential heat exchanger damage

To maintain proper furnace operation, airflow must meet standards recommended by the U.S. Department of Energy:
https://www.energy.gov/energysaver/furnaces-and-boilers

At Honest Fix Heating, Cooling & Plumbing, we address airflow issues as a Rheem Pro Partner and Authorized Rheem Service Provider, ensuring filtration systems are matched to Rheem furnace airflow specifications.

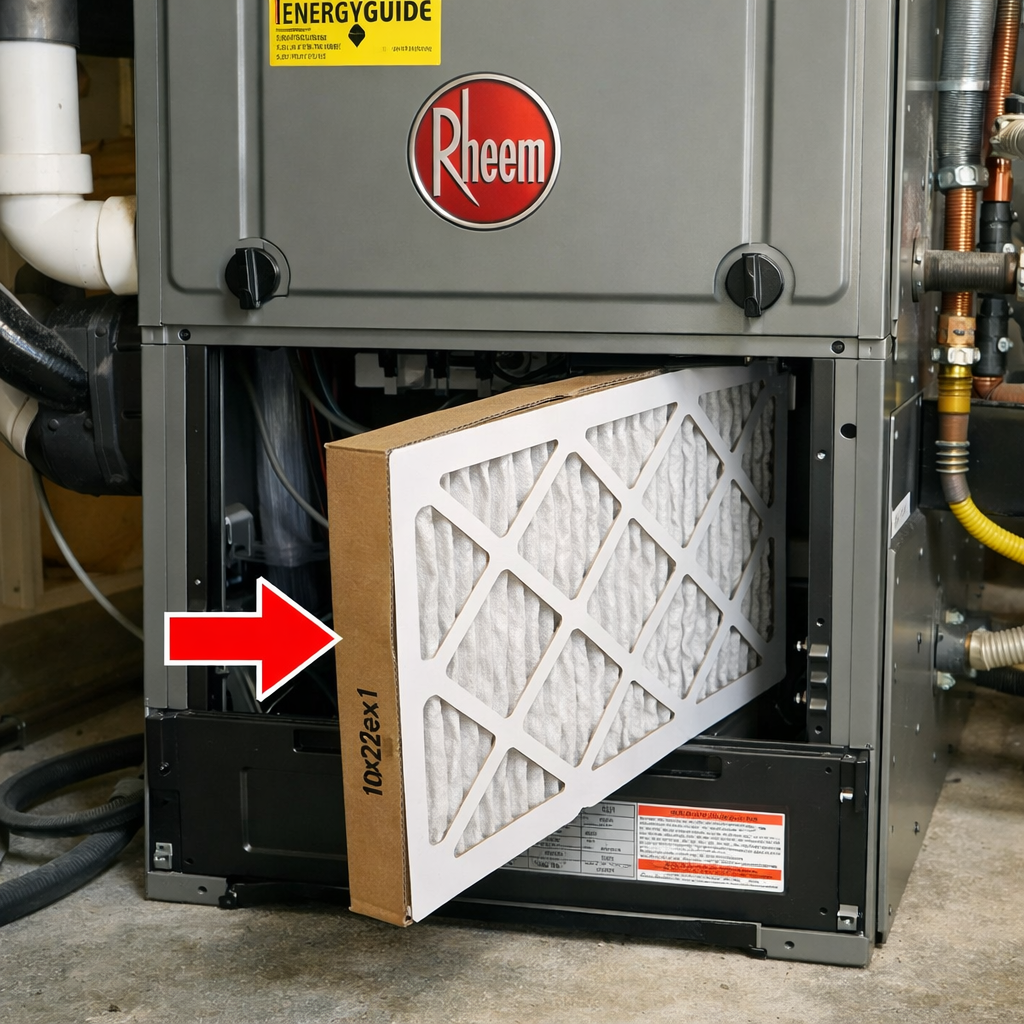

Where Is the Filter Located on a Rheem Furnace?

Quick Answer:
The filter location depends on how the furnace is installed. Filters may sit inside the furnace cabinet, in a return air duct rack, or inside an external air purifier cabinet installed next to the furnace.

Filter placement varies based on the installation orientation.

Common Filter Locations

These configurations are common in homes across Steubenville, Weirton, and the Upper Ohio Valley.

The “V-Shape Filter” Found in Older Rheem Furnaces

Some legacy Rheem Criterion II furnaces place the filter inside the blower compartment in a V-shaped configuration.

Accessing it requires removing the lower cabinet door.

Because this setup is difficult to maintain, many technicians retrofit these systems with external filtration cabinets for easier access and improved airflow protection.

Why Many Contractors Recommend AprilAire Air Purifiers

Quick Answer:
Deep-media filtration systems such as AprilAire Space-Gard filters provide higher filtration efficiency with lower airflow resistance than standard 1-inch filters. This protects HVAC components while improving indoor air quality.

The primary reason we recommend AprilAire filtration systems is their ability to protect the indoor evaporator coil.

The evaporator coil sits above the furnace and is responsible for cooling during summer.

Dust buildup on the coil can significantly reduce efficiency.

Research shows that even a 0.02-inch layer of dust on the coil can reduce cooling efficiency by roughly 15 percent.

AprilAire filtration systems include features designed to prevent this buildup.

The AprilAire Clean Coil Commitment

AprilAire offers a 10-year Clean Coil commitment when their air purifier protects a newly installed coil.

If the coil requires professional cleaning within that time frame, AprilAire contributes toward the service.

Another key feature is SelfSeal™ technology, which seals the filter media inside the cabinet.

This prevents bypass air, a common problem with standard filters that allows dust to pass around the edges instead of through the filter.

Why Many 1-Inch Filters Restrict Furnace Airflow

Quick Answer:
High-MERV 1-inch filters can create excessive static pressure resistance, reducing airflow through the furnace. Restricted airflow increases furnace temperature and may trigger safety shutdowns or long-term equipment damage.

Airflow resistance is measured using external static pressure, usually expressed in inches of water column (w.c.).

Higher resistance means the blower must work harder to move air.

Filter Airflow Comparison

AprilAire media filters use 4-inch deep pleats with roughly nine times the surface area of a standard filter.

This allows strong filtration while maintaining proper airflow.

System performance data can be verified through the Air-Conditioning, Heating, and Refrigeration Institute equipment directory:
https://www.ahridirectory.org

Rheem Furnace Filter FAQs

Which Direction Should the Arrow on My Furnace Filter Face?

Quick Answer:
The arrow printed on the filter must point toward the furnace blower, indicating airflow direction. Installing a filter backward can reduce efficiency and may cause the filter to collapse into the blower compartment.

If the filter is installed in a ceiling return grille, the arrow points up into the duct.

How Often Should a Furnace Filter Be Replaced?

Quick Answer:
Standard 1-inch filters should be checked every 30 days and replaced when dirty. Deep-media filters like the AprilAire 2000 series typically last 6–12 months, depending on pets, dust levels, and seasonal allergies.

Homes in the Ohio Valley often experience heavy pollen seasons that shorten filter life.

What Size Filter Does My Rheem Furnace Need?

Quick Answer:
Filter size depends on the cabinet width of the furnace. Larger cabinets allow larger filtration systems that improve airflow and filtration efficiency.

Typical matches include:

• 17.5-inch cabinet → AprilAire 2410
• 21-inch cabinet → AprilAire 2210
• 24.5-inch cabinet → AprilAire 2210 with transition

Correct sizing ensures the blower receives adequate airflow.

Is a Dirty Furnace Filter a Safety Risk?

Quick Answer:
Yes. A clogged filter can cause the furnace to overheat and trigger a high-limit shutdown (Code 22). Repeated overheating stresses the heat exchanger and may eventually lead to cracks.

Safety guidance for fuel-burning appliances is available from the Consumer Product Safety Commission:
https://www.cpsc.gov/Safety-Education/Safety-Education-Centers/Carbon-Monoxide-Information-Center/Home-Heating-Equipment

What Guarantees Do You Offer?

Quick Answer:
Honest Fix protects homeowners with two major guarantee programs. New installations include a 15-year labor warranty, while repairs include a 5-year labor warranty, both backed by written service guarantees.

Lifetime Trust Shield — Installations

Installation protection includes:

• 15-year labor warranty on HVAC systems
• 90-day money-back satisfaction guarantee
• no-lemon replacement protection
• energy savings guarantee

Annual maintenance keeps coverage active.

Service Trust Guardian — Repairs

Repair protection includes:

• 5-year labor warranty on qualifying repairs
• 60-day money-back service guarantee
• no overtime charges for emergency calls
• on-time arrival guarantee

These guarantees reduce the risk of repeat failures.
